High Repurchase Rate and Fine Quality AOT-MD-500 medical grade ozone generator

High Repurchase Rate and Fine Quality AOT-MD-500 medical grade ozone generator

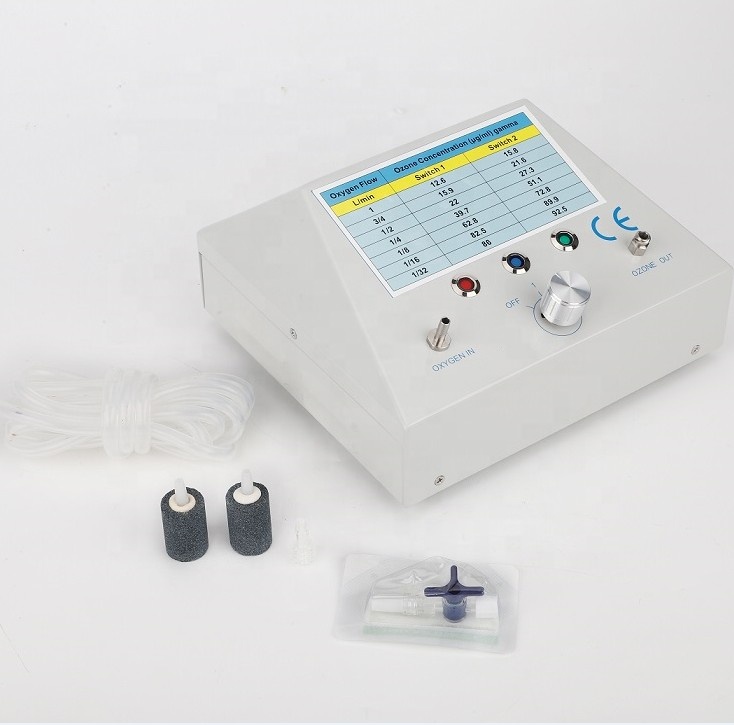

The model AOT-MD-500 is a most popular medical ozone generator that designed for multi-treatments with medical grade ozone gas. It uses the 99.9% stainless steel or Titanium electrodes to make pure oxygen/ozone mixed gas in high accuracy of ozone concentrations. There are 4 switches are available, and it can deliver pure ozone from low to high concentrations (10-100 ug/mL) for different therapy applications. Specially, it has been built-in both the powerful ozone destructor and ozone fan and makes the machine very convenient to use.

The model AOT-MD-500 is a most popular medical ozone generator that designed for multi-treatments with medical grade ozone gas. It uses the 99.9% stainless steel or Titanium electrodes to make pure oxygen/ozone mixed gas in high accuracy of ozone concentrations. There are 4 switches are available, and it can deliver pure ozone from low to high concentrations (10-100 ug/mL) for different therapy applications. Specially, it has been built-in both the powerful ozone destructor and ozone fan and makes the machine very convenient to use.

medical grade ozone genenrator





AOT-MD-500 Specification
Ozone concentration10-100μg/ml with oxygen source (adjustable)
Oxygen flow1/32-1L/min
Continuous operation24 h/day with inside cooling system
Cooling systemAir cooling,built-in a 15 CFM fan
Ozone generating methodGerman high voltage discharge
Input voltage110V-220VAC
Power12W
Operating temperature-10 deg C°+40 deg C°
Storage temperature-20 deg C°+70 deg C°
Size(L×W×H)206×180×105mm
Weight3 kg with package

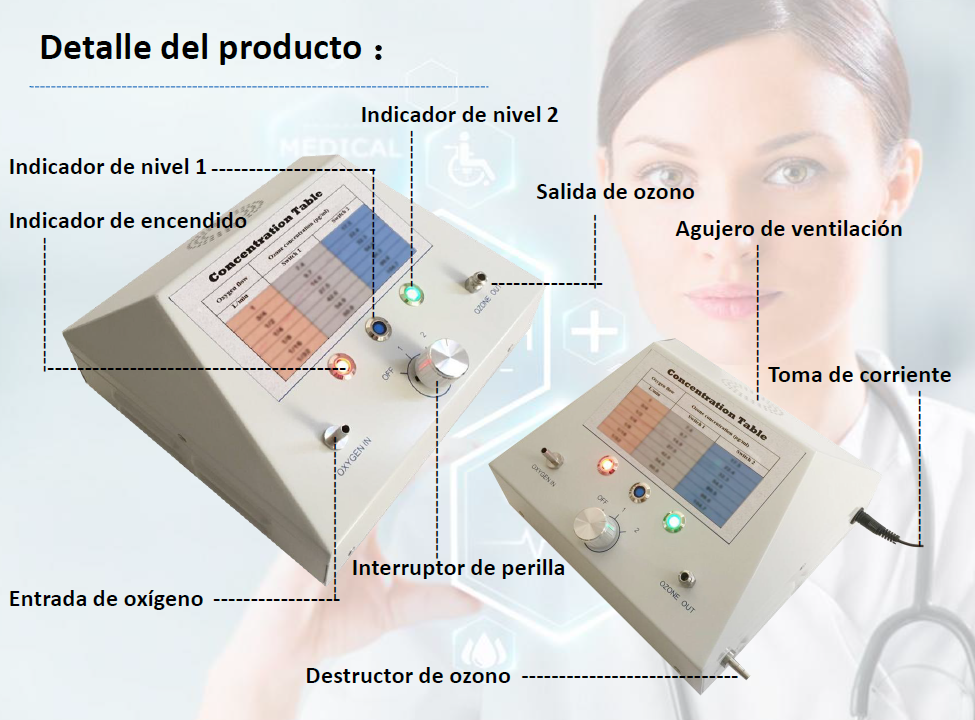

Ozone Gnerator Details AOT-MD-500
ozone machine

 Small and compact design

316S.S electrode, available in titanium electrode

Very easy installation with very reasonable design

Built-in fan cooling system to make sure a long working life

 Two optional installation modes: portable and wall-mounted

Built-in air pump

100% check ozone concentration before ship

100% burn-in test in production

100% 304 stainless steel housing and ozone compatible material

Suitable for water treatment/air treatment/medical treatment

CE approval

Stable performance

Application Scope:

1. It could be used to treat infections, wounds anddisinfect extra corporeal blood samples of HIV.

2. It could also be used for Dental Hygiene and blood purification.

3. It could be used to treat diseases such as diabetes, lumbar disc herniation and etc.

4. It is widely used in ozone therapy and ozone treatment home and abroad.

Introduction to Ozone Therapy Diseases​

More about this item

The model AOT-MD-500 is a most popular medical ozone generator that designed for multi-treatments with medical grade ozone gas. It uses the 99.9% stainless steel or Titanium electrodes to make pure oxygen/ozone mixed gas in high accuracy of ozone concentrations. There are 4 switches are available, and it can deliver pure ozone from low to high concentrations (10-100 ug/mL) for different therapy applications. Specially, it has been built-in both the powerful ozone destructor and ozone fan and makes the machine very convenient to use.

medical grade ozone genenrator





AOT-MD-500 Specification
Ozone concentration10-100μg/ml with oxygen source (adjustable)
Oxygen flow1/32-1L/min
Continuous operation24 h/day with inside cooling system
Cooling systemAir cooling,built-in a 15 CFM fan
Ozone generating methodGerman high voltage discharge
Input voltage110V-220VAC
Power12W
Operating temperature-10 deg C°+40 deg C°
Storage temperature-20 deg C°+70 deg C°
Size(L×W×H)206×180×105mm
Weight3 kg with package




Ozone Gnerator Details AOT-MD-500
ozone machine

 Small and compact design

316S.S electrode, available in titanium electrode

Very easy installation with very reasonable design

Built-in fan cooling system to make sure a long working life

 Two optional installation modes: portable and wall-mounted

Built-in air pump

100% check ozone concentration before ship

100% burn-in test in production

100% 304 stainless steel housing and ozone compatible material

Suitable for water treatment/air treatment/medical treatment

CE approval

Stable performance

Application Scope:

1. It could be used to treat infections, wounds anddisinfect extra corporeal blood samples of HIV.

2. It could also be used for Dental Hygiene and blood purification.

3. It could be used to treat diseases such as diabetes, lumbar disc herniation and etc.

4. It is widely used in ozone therapy and ozone treatment home and abroad.

Introduction to Ozone Therapy Diseases​
